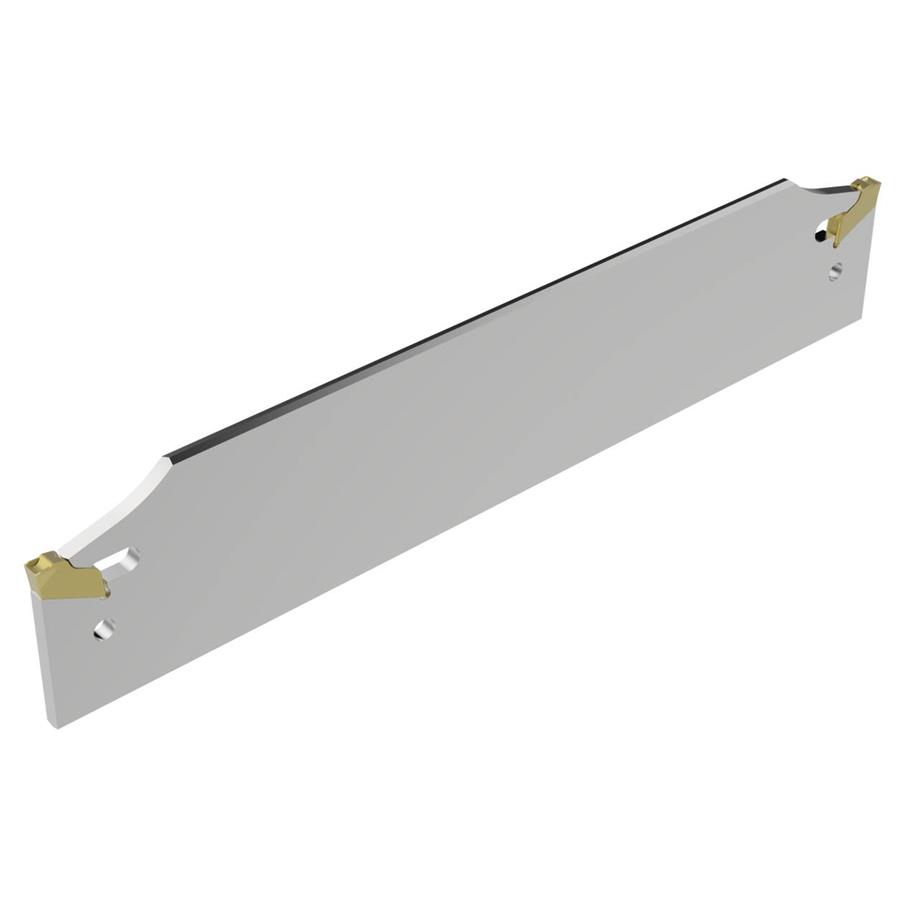

L150.10A-25-1.4 Parting Off Blade
Description
- CDX Cutting depth maximum- 17.5 mm
- CSP Coolant supply property -0
- CTMS Connection text machine side Blade-25
- CTWS Connection text workpiece side 150.10-1.4
- CUTDIA Work piece parting diameter maximum- 35.0 mm
- CW Cutting width -1.40 mm
- HAND Direction of cutting- Left
- HF Functional height -24.9 mm
- ItemNumber- 02578595
- KAPR Tool cutting edge angle -90.0 deg
- LH Head length -24.0 mm
- OAL Overall length- 150.0 mm
- OAW Overall width -1.2 mm
- Net weight -0.079 kg
- VER Version (Internal/External/Both)- External
| Product Code | SE02578595 |
|---|---|
| Brand | SECO |
