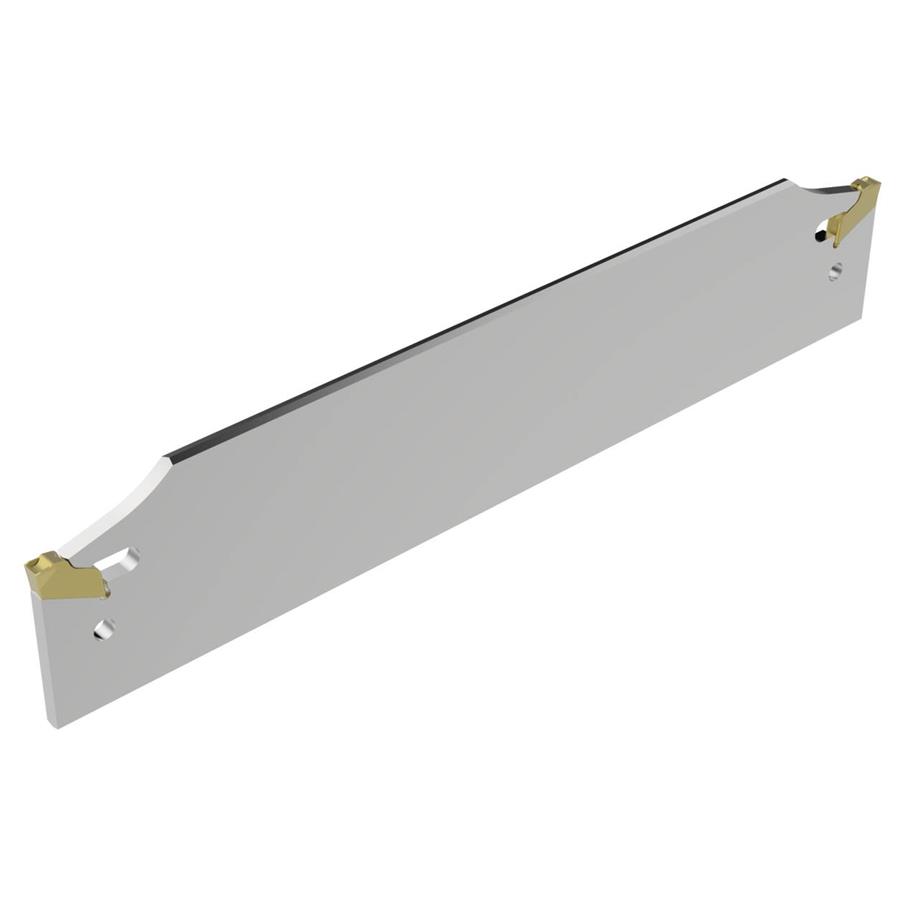

150.10A-25-1.4 Parting Off Blade Seco

£0.00 ex. VAT £0.00 inc. VAT

UOI: EACH





Description

  • CDX Cutting depth maximum -17.5 mm
  • CSP Coolant supply property -0
  • CTMS Connection text machine side Blade-25
  • CTWS Connection text workpiece side 150.10-1.4
  • CUTDIA Work piece parting diameter maximum- 35.0 mm
  • CW Cutting width -1.40 mm
  • HAND Direction of cutting- Neutral
  • HF Functional height -25.0 mm
  • Item Number- 02578586
  • KAPR Tool cutting edge angle- 90.0 deg
  • LH Head length -24.0 mm
  • OAL Overall length- 150.0 mm
  • OAW Overall width -1.2 mm
  • Weight Net weight -0.078 kg
  • VER Version (Internal/External/Both)- External
Product CodeSE02578586
BrandSECO
